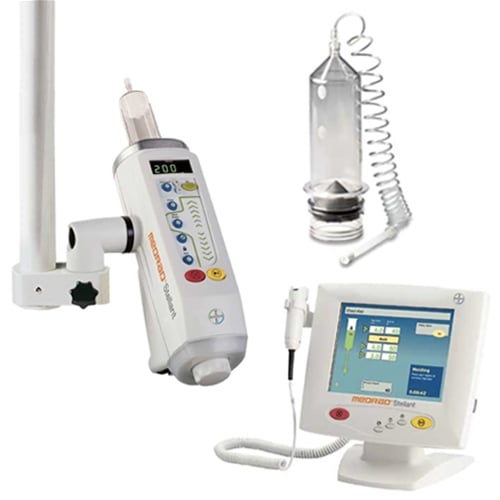

Bayer Medrad Stellant Sx

Single Product Request Form
Category

Description

Bayer Medrad Stellant Sx Features:

  • Single-head CT intelligent and intuitive injection system.
  • Priming button and remote arming button on the injector head.
  • Simple snap-on mechanism for syringe attachment in any orientation.
  • Color touchscreen user interface with easy-to-read, anti-glare screen.
  • Storage and recall of up to 32 different protocols.

SPECIFICATIONS Bayer Medrad Stellant Sx Specifications:

  • Dimensions (Single Injector Head):
    • Height: 6.1 in (15.5 cm)
    • Width: 8.6 in (21.8 cm)
    • Depth: 14.5 in (36.8 cm)
    • Weight: 12 lbs (5.4 kg)
  • Flow Rate:
    • Range & Increments: 0.1 to 10 mL/sec in 0.1 mL increments
  • Volume:
    • Range & Increments: 1 mL to syringe capacity in 1 mL increments
  • Programmable Pressure Limit (psi/kPa):
    • 200 mL syringe: 325 psi, 2241 kPa
  • Scanning Delay: 0-300 seconds (5 minutes) in 1-second increments
  • Pause: 1-900 seconds (15 minutes) in 1-second increments
  • Hold: Maximum HOLD time is 20 minutes
  • Syringe Sizes: 200 mL sterile disposable syringes
  • Maximum Number of Phases: 6
  • Maximum Number of Protocols: 32
