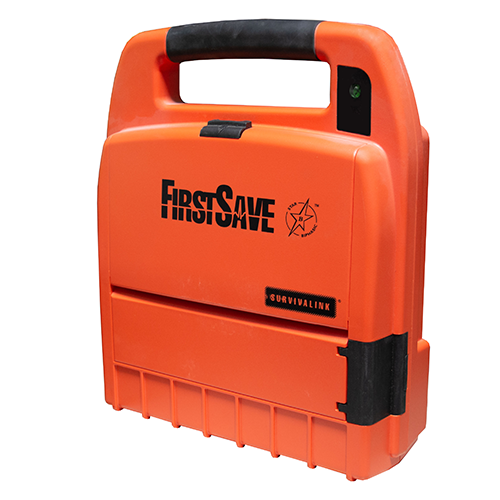

Cardiac Science Survivalink

Description

Cardiac Science Survivalink Feature:

• Battery-operated automated external defibrillator (AED).
• Analyzes patient’s ECG reading to determine the necessity of a shock, offering three types of ECG readings: Ventricular fibrillation, Ventricular tachycardia, and Supraventricular tachycardia.
• Guides users through the rescue process with a combination of voice prompts, audible alerts, and visual indicators.
• Shocks delivered in a pre-programmed sequence of escalating monophasic or biphasic energies.
• Capable of delivering up to 360 joules of energy in a shock if needed.

Cardiac Science Survivalink Specifications:

Dimensions:

• Height: 3.3” (8 cm)
• Width: 10.6” (27 cm)
• Depth: 12.4” (31 cm)
• Weight: 7.4 to 7.8 lbs (3.3 to 3.5 kg)

Interpretation of ECG:

• Designed to recommend a defibrillation shock when placed on a patient who is unconscious, not breathing, and has no pulse.
• Recognizes Ventricular fibrillation, Ventricular tachycardia, and Supraventricular tachycardia based on specific ECG criteria.

Battery:

• Type: Extended Life Lithium, disposable, non-rechargeable
• Operating Life: 5 years
• Shelf Life: 5 years
• Charge Time: 11 seconds to charge a fully discharged Survivalink AED to its maximum energy with a new battery.

Energy Levels:

• Utilizes variable energy delivery based on patient’s impedance.
• Delivers energy at two different levels referred to as low current and high current, allowing for escalating energies of subsequent shocks.
