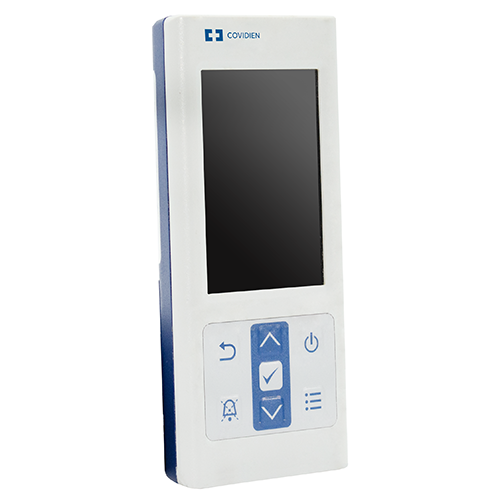

Covidien Nellcor PM10N

Description

Covidien Nellcor PM100N Description:

• Patient monitor with SpO2 and pulse rate monitoring features.
• Suitable for hospital settings, non-hospital settings, home care, and sleep studies.
• Incorporates the latest Nellcor technology for accurate and reliable readings.
• Features a SatSecond alarm management system to distinguish between meaningful alarms and transient events.
• Displays plethysmographic waveforms, pulse amplitude, and real-time SpO2 and pulse rate data.
• Offers 96-hour trend memory for quick review of changes in patient status.
• Supports password-protected homecare and sleep study modes.

Covidien Nellcor PM100N Specifications:

• Dimensions:
  • Weight: 1.5 kg (3 lbs)
  • Size: 82 H x 255 W x 155 D (mm), (3.23 H x 10.04 W x 6.10 D in)
• Operating Temperature:
  • Instrument: 5°C to 40°C (41°F to 104°F)
  • Transport/Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Humidity: 15% to 93% non-condensing
• Operating Altitude: -170 m to 4877 m (-557 ft to 16,000 ft)
• Battery:
  • Type: Lithium ion
  • Battery Capacity: Minimum of five hours using new, fully charged battery with no alarms; optional 10-hour battery
• Electrical:
  • Power Requirements: 100 to 240 VAC, 50/60 Hz, 45 VA
  • Fuse Rating: Fast-acting 2 A 32VAC/DC, Fast-acting 500 mA 32VAC/50DC
• Saturation:
  • Adult: 70% to 100% ± 2 digits
  • Adult and Neonate (low sat): 60% to 80% ± 3 digits
  • Neonate: 70% to 100% ± 2 digits
  • Low Perfusion: 70% to 100% ± 2 digits
  • Adult and Neonate with Motion: 70% to 100% ± 4 digits
• Pulse Rate:
  • Adult and Neonate: 20 to 250 bpm ± 3 digits
  • Low Perfusion: 20 to 250 bpm ± 3 digits
  • Adult and Neonate with Motion: 20 to 250 bpm ± 5 digits
• Performance:
  • Measurement Range SpO2: 1% to 100%
  • Pulse Rate: 20 to 250 beats per minute (bpm)
  • Pulse Amplitude: 0.03% to 20%
