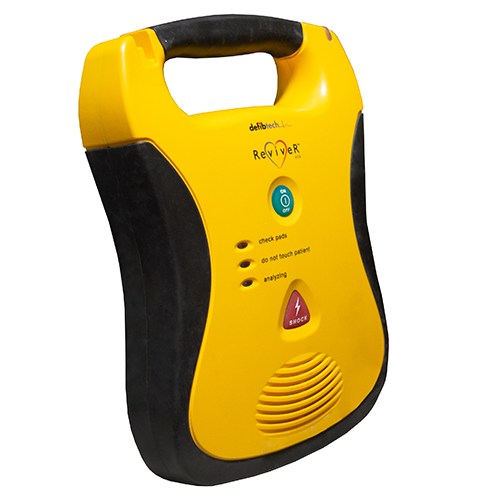

Defibtech DDU-100 Lifeline AED

Single Product Request Form
Category

Description

Defibtech DDU-100 Lifeline AED Feature:

  • Semi-automatic external defibrillator (AED) designed for simplicity and ease of use.
  • Automatically analyzes the patient’s ECG to determine the presence of a shockable rhythm.
  • Provides voice prompts and visual indicators to guide the operator through the rescue process.
  • Features two user controls: on/off and Shock, with the Shock button enabled only when a shockable rhythm is detected.
  • Delivers defibrillation energy as an impedance-compensated biphasic truncated exponential waveform.
  • Can deliver 150J of defibrillation energy to adult patients and 50J to child and infant patients.
  • Runs off a replaceable, non-rechargeable lithium battery pack.

Defibtech Lifeline DDU-100 Specifications:

Dimensions:

  • Height: 11.8” (30 cm)
  • Width: 8.5” (22 cm)
  • Depth: 2.7” (7 cm)
  • Weight: 4.4 lbs (2 kg)

General:

  • Waveform: Biphasic Truncated Exponential
  • Energy: Adult: 150 Joules; Infant/child: 50 Joules
  • Charge Control: Automatic by Patient Analysis System
  • Charge Time From Shock-Advised: Typically < 6 seconds with a fresh DBP 2800 battery pack and < 9 seconds with a fresh DBP-1400 battery pack.
  • Disarm Automatic: If Patient Analysis System decides rhythm is no longer shockable, within 30 seconds after the Charge is complete, or if defibrillation pads are removed from the patient or unplugged from the unit.
  • Disarm Manual: If the operator presses the OFF/DISARM button at any time to disarm and turns off the device.

High-Capacity Battery

  • Main Battery Type: 15VDC, 2800 mAh, Lithium/Manganese Dioxide. Disposable, recyclable, non-rechargeable
  • Capacity: 300 shocks or 16 hours of continuous operation
  • Charge Time: < 6 seconds
  • Standby-life (installed in unit): 7 years
  • Active Status Indicator (ASI) Battery: 9VDC, 1200 mAh, Lithium Manganese Dioxide. Disposable, recyclable, non-rechargeable.
  • ASI Battery Standby-Life (after installation): >1 year

Standard Battery

  • Main Battery Type: 15VDC, 1400 mAh, Lithium/Manganese Dioxide. Disposable, recyclable, non-rechargeable.
  • Capacity: 125 shocks or 8 hours of continuous operation.
  • Charge Time: < 9 seconds
  • Standby-life (installed in unit): 5 years
  • Active Status Indicator (ASI) Battery: 9VDC, 1200 mAh, Lithium/ Manganese Dioxide. Disposable, recyclable, non-rechargeable.
  • ASI Battery Standby-Life (after installation): >1 year
