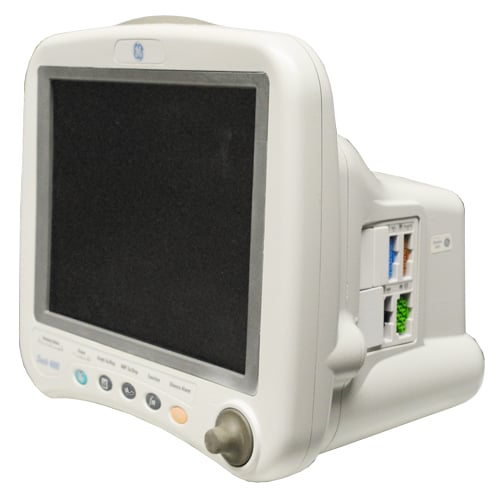

GE Dash 4000

Single Product Request Form
Category

Description

Features:

  1. Portable Design: The GE Dash 4000 is a portable patient monitor suitable for various clinical settings. It offers unmatched adaptability at the bedside, making it versatile for different patient care scenarios.
  2. Multi-Parameter Monitoring: This patient monitor provides readings for various parameters, including EKG/ECG, NIBP, SpO2, temperature, and more. It offers comprehensive monitoring capabilities to support patient care.
  3. Color Display: Equipped with a 10.4-inch color screen, the Dash 4000 provides clear and easily visible patient information from a distance, enhancing monitoring efficiency.
  4. Networking Capabilities: It can be connected to the facility’s GE Carescape network for seamless data transfer between machines through both wired and wireless connections, facilitating efficient patient data management.
  5. Advanced Monitoring Features: The Dash 4000 offers advanced monitoring features such as 12-lead ECG/EKG reading, EK-Pro arrhythmia detection, ST-Segment analysis, and A-fib detection, enabling early intervention and comprehensive patient care.
  6. Options for Agent Monitoring: It provides options for agent monitoring, allowing clinicians to monitor additional parameters as needed for specific patient conditions or procedures.

GE Dash 4000 Specifications:

  • Dimensions:
    • Height: 10.7 in (27.4 cm)
    • Depth: 9.5 in (24.3 cm)
    • Width: 11.5 in (29.3 cm)
    • Weight: 5.7 kg
  • Display:
    • Size: 26 cm (diagonal)
    • Type: active-matrix color TFT
    • Resolution: 640 by 480 pixels
    • Number of traces: 6 maximum
    • Sweep speed: 6.25, 12.5, 25 mm/sec
  • Controls:
    • Trim Knob® control
    • Five hard keys: silence alarm, graph go/stop, function (zero all), and power on/off
  • Alarms:
    • Categories: patient status and system status
    • Priority: 4 levels – crisis, warning, advisory, and message
    • Notification: audible and visual
    • Settings: default and individual
    • Silencing: 1 minute, current alarm only
    • Pause: 5 minutes in adult ICU mode, 3 minutes in neonatal ICU mode, and 5, 15, or permanent pause in OR mode
  • Monitoring Parameters:

ECG, Respiration, Temperature, Invasive Blood Pressure, NIBP, Pulse Oximetry,
