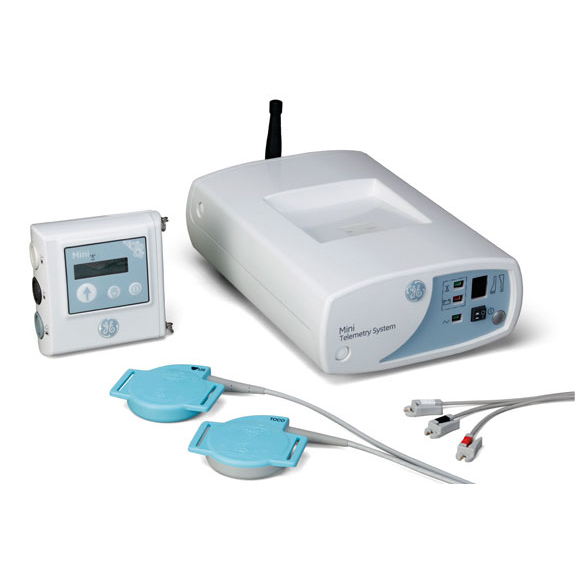

GE Mini Telemetry System

Description

Features:

• Complete wireless monitoring solution for enhanced workflow and patient comfort during childbirth.
• Compatible with watertight Nautilus Transducers for reliable monitoring.
• Provides gap-free monitoring during most birthing processes.
• Compatible with existing Corometrics monitors and transducers.
• Wireless telemetry technology with a three-port design allows monitoring of FHR, uterine activity, and ECG.
• Ability to perform twin monitoring.
• Extended-life battery of 12 hours for continuous monitoring.
• Equipped with a speaker/headphone jack for audio output.
• Backlit display, battery indicator, connection status, and fetal movement monitoring for ease of use.
• Priority valve conserves tanks for transport.

Specifications:

• Dimensions:
  • Height: 4.0 in (10.2 cm)
  • Width: 8.1 in (20.6 cm)
  • Depth: 11.9 in (30.2 cm)
  • Weight: 5.6 lbs (2.55 kg)
• Monitoring Modes:
  • Ultrasound
  • External Uterine Pressure (TOCO) or Internal Uterine Pressure Catheter (IUPC)
  • Fetal ECG or Maternal ECG
• Ultrasound System:
  • Pulsed Doppler
  • Output Power: 4mW
  • Available Frequencies: 608.0250 – 613.9750MHz
  • Transmission Range: 1640 ft (500m) line of sight
  • Antenna Type: Internal, helical; Flexible, detachable, BNC interconnect
• Battery:
  • Rechargeable dual-cell Lithium Ion
  • 2VDC at 2600mAh
  • Full charge run time: up to 12 hours
  • Recharge to full charge: 4 hours
• Output Signals:
  • US, FECG, MECG, TOCO, IUPC, Mark
• Power Requirements:
  • 100–120VAC, 50–60Hz; 220-240VAC, 50-60Hz
  • Max Power: 30W
