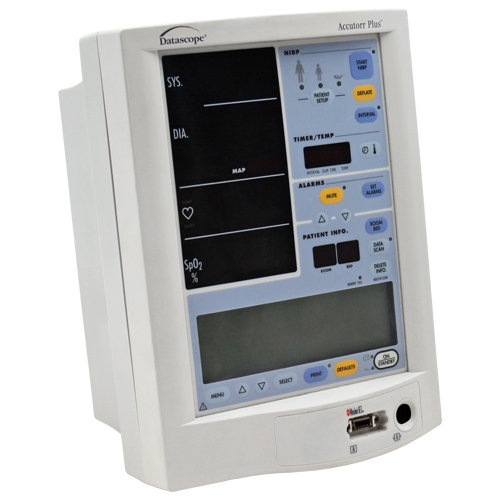

Mindray Datascope Accutorr Plus

Single Product Request Form
Category

Description

Features:

  • Patient and vitals monitor suitable for adult, pediatric, and neonatal patients.
  • Available in three different models:
    1. Basic model: Measures NIBP and pulse rate.
    2. Advanced models: Measure SpO2 with either Nellcor or Masimo pulse oximetry. Additionally equipped with a liquid crystal display and a trend screen.
  • Standard Lithium Ion battery included, with advanced models adding liquid crystal display and trend screen.
  • Optional modules available, including a predictive thermometer module, optional Infrared thermometer module, or recorder module.
  • Trend memory stores up to 100 measurements.
  • High contrast LCD available in advanced models.
  • Universal mounting options provided.
  • Weighs approximately 11 pounds.

Specifications:

  • Dimensions:
    • Height: 10.6 in (26.93 cm)
    • Width: 7.5 in (19 cm)
    • Depth: 8.2 in (20.83 cm)
    • Weight: 11 lbs (4.95 kg) (Depending on configuration)
  • Systolic Pressure Readout:
    • Number of Digits: 3
    • Accuracy: Mean error <5 mmHg, Standard deviation <8 mmHg
    • Adult Range: 55 to 260 mmHg
    • Pediatric Range: 55 to 160 mmHg
    • Neonatal Range: 45 to 120 mmHg
  • Diastolic Pressure Readout:
    • Number of Digits: 3
    • Accuracy: Mean error <±5 mmHg, Standard deviation <±8 mmHg
    • Adult Range: 30 to 200 mmHg
    • Pediatric Range: 30 to 150 mmHg
    • Neonatal Range: 25 to 100 mmHg
  • Pulse Rate:
    • Range: 35-245 BPM for Adult and Pediatric; 70-245 BPM for Neonates
    • Display Resolution: 1 BPM
    • Accuracy: ±3 BPM or ±3%, whichever is greater
  • Temperature (Predictive):
    • Range: 90-110°F, 32-43°C
    • Display Resolution: 0.1°F, 0.1°C
    • Accuracy: Meets ASTM E1112-86 for accuracy
  • SpO2 (Nellcor/Masimo):
    • Range: 70-100% SpO2
    • Display Resolution: 1% SpO2
    • Accuracy: ± 2 digits from 70 – 100% SpO2 – Adult; ±3 digits from 70 -100% SpO2 – Neonates; <70% unspecified
  • Pulse Rate Range (Nellcor): 21 – 249 BPM
  • Pulse Rate Range (Masimo): 26 – 239 BPM
  • Battery:
    • Battery Type: Lithium Ion
    • Number of Batteries: 1
    • Battery Voltage: 11.1 VDC nominal
    • Battery Capacity: 4.4 Amp-Hour
    • Battery Run Time:
      • Accutorr Plus basic model: Up to 9.5 hours
      • Accutorr Plus advanced models: Up to 7 hours

Recharge Time: 4 Hours Maximum
