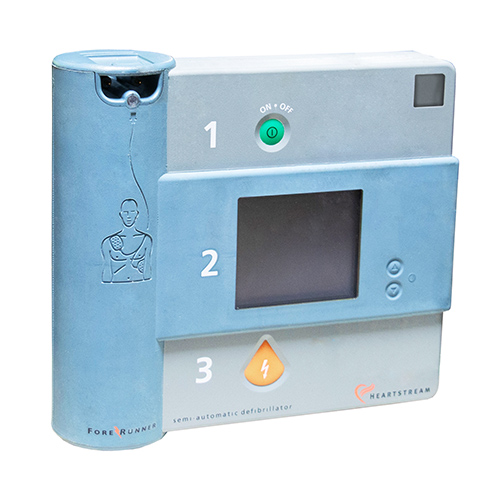

Philips HeartStart FR1

Single Product Request Form
Category

Description

Philips HeartStart FR1 Features:

  • Also known as the Philips HeartStart Forerunner, it is a semi-automatic defibrillator.
  • Equipped with an LCD screen displaying prompts for resuscitation, patient information, and ECG readings.
  • Lightweight and portable, running on battery power.
  • Conducts periodic self-diagnostic tests to ensure system readiness.
  • Can analyze the patient’s ECG reading to determine the need for a shock.
  • Can deliver a minimum of 130 joules of energy in a shock if necessary.
  • Offers easy usability and intuitive operation.
  • Utilizes disposable, recyclable sealed lithium batteries.
  • Provides a nominal 150 Joule energy shock with less than 10 seconds of charge time.
  • Features a high-resolution backlit LCD screen displaying ECG and informational text messages.
  • Uses disposable and self-adhesive defibrillation pads.
  • Offers an optional PC data card for recording event information, ECG, voice, and other audible activity.

Philips HeartStart FR1 Specifications:

Dimensions:

  • Height: 2.53 in. (6.4 cm)
  • Width: 8.75 in. (22.3 cm)
  • Depth: 8 in. (20.3 cm)
  • Weight (With battery): 4.4 lbs (2 kg)

Battery:

  • 16 VDC 1300 mAH lithium
  • Disposable, recyclable, long-life, primary cells
  • Capacity: 100 shocks or 5 hours of operating time
  • Shelf-Life: 5 Years

Display:

  • High-resolution backlight LCD
  • Height: 2.3 in. (5.8 cm)
  • Width: 2.8 in. (7 cm)

Defibrillator:

  • Waveform: Truncated Exponential Biphasic
  • Energy: Single Energy—a nominal of 150 Joules (minimum of 130 Joules) delivered to a 50-ohm load
  • Charge Control: Under control of the Patient Analysis System for semi-automatic operation
  • Charge Time: Typically less than 10 seconds
  • Shock-to-Shock Cycle Time: Typically less than 20 seconds
  • Shock Discharge Control: Delivered by a single shock button

Disarming Defibrillator:

  • Semi-automatic operation: Disarms under various conditions including a no-shock decision, turning off the device, or removing the defibrillation pads from the patient.
  • Manual operation: Disarms under conditions such as not delivering a shock within 30 seconds after charging, manual override button press, or turning off the device.

ECG Display:

  • Monitored Lead: ECG information acquired through defibrillation pads in anterior-anterior (Lead II) placement
  • Display Range: Differential: ±2 mV full scale nominal
  • Sweep Speed: 23 mm/sec nominal
  • Frequency Response: 1 Hz to 20 Hz (-3 dB) nominal
  • Sensitivity: 1.16 cm/mV nominal
  • Heart Rate: Displayed range of 30 to 300 beats per minute updated each analysis period, displayed during monitoring mode and if ECG is shown.
