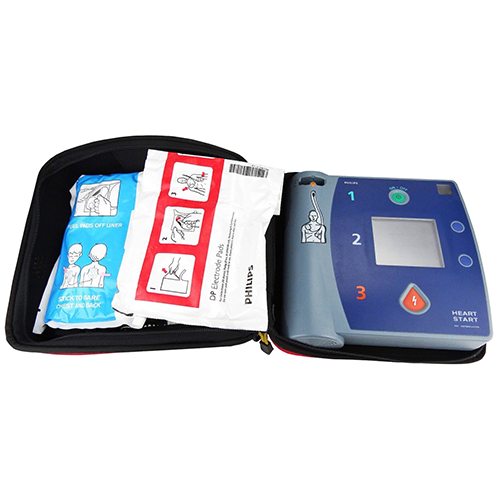

Philips HeartStart FR2

Single Product Request Form
Category

Description

Philips HeartStart FR2 Features:

  • Battery-powered lightweight AED designed for ease of use.
  • Simple design with only two buttons: an on/off button and a shock button.
  • Display screen provides text prompts and patient information, including ECG readings.
  • Specifically designed for first responders in emergencies for adult patients.
  • Can deliver up to 150 joules of energy through a shock.
  • Automatically performs self-tests, requiring minimal maintenance.
  • Internal memory stores summaries of incident information.
  • Utilizes non-rechargeable lithium battery.
  • Includes adult and infant/child pads.
  • Features a high-resolution backlight LCD screen.
  • Utilizes SMART biphasic waveform and SMART Analysis for accurate diagnosis.

Philips HeartStart FR2 Specifications:

Dimensions:

  • Height: 2.6 in. (6.6 cm)
  • Width: 8.6 in. (21.8 cm)
  • Depth: 8.6 in. (21.8 cm)
  • Weight (With battery): 4.7 lbs (2.1 kg)

Battery:

  • 12 VDC 4.2 Ah, lithium manganese dioxide
  • Disposable, recyclable, long-life, primary cell
  • Capacity: 300 shocks or 12 hours of operating time
  • Shelf-Life: 5 Years

Display:

  • High-resolution backlight LCD
  • Height: 2.3 in. (5.8 cm)
  • Width: 2.8 in. (7 cm)

Defibrillator:

  • Waveform: Biphasic truncated exponential
  • Energy: Adult pads: 150 J nominal (±15%) into a 50 ohm load. Infant/child pads: 50 J nominal (±15%) into a 50-ohm load
  • Charge Control: Controlled by Patient Analysis System for automated operation
  • Charge Time: Typically less than 10 seconds

ECG Display:

  • Monitored Lead: ECG information received from adult defibrillator pads in the anterior-anterior (Lead II) position or from FR2 infant/child reduced-energy defibrillator pads in the anterior-posterior position.
  • Frequency Response: 1 Hz to 20 Hz (-3 dB), nominal
  • Sensitivity: 1.16 cm/mV, nominal
  • Heart Rate: 30 to 300 bpm, updated each analysis period

Data Card:

  • Capacity: 8 hours of event and ECG data, or 60 minutes with voice recording

Environmental Data:

  • Operating Temperature: 32° F to 122 °F (0° C to 50° C)
  • Operating Humidity: 0% to 95% RH
  • Standby Temperature: 32° F to 109° F (0° C to 43° C)
  • Standby Humidity: 0% to 75% RH

ECG Analysis System:

  • Evaluates defibrillation pad impedance and ECG rhythm and signal quality.
  • Follows pre-programmed settings matching local EMS guidelines or medical protocols.
  • Can detect shockable rhythms, asystole, pacemakers, and artifact interference.
  • Determines appropriate action based on analysis results.
