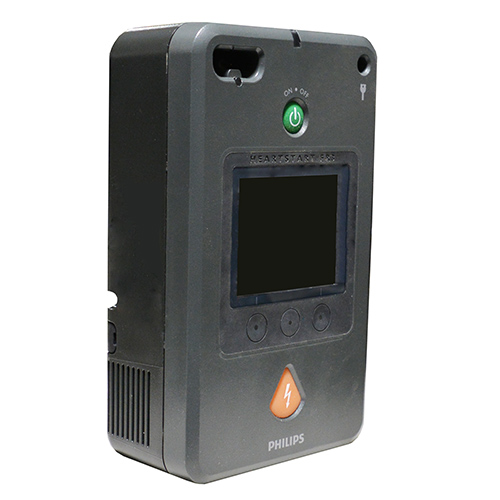

Philips HeartStart FR3

Single Product Request Form
Category

Description

Philips HeartStart FR3 Features:

  • Automatic External Defibrillator (AED) designed for quick action in emergency situations.
  • Compact and lightweight for easy transportation with other medical equipment.
  • Automatically powers on by opening the FR3 carry case.
  • Pre-connected pads that are peeled and placed for quick use.
  • Can deliver a shock in as little as 8 seconds.
  • SMART PADS can be used for both adults and children.
  • Patient-specific guidance with Philips SMART CPR.
  • Comes with an infant/child key to adjust defibrillation settings.
  • Performs automatic daily, weekly, and monthly self-tests.
  • Bilingual configuration for broader accessibility.

Philips HeartStart FR3 Specifications:

Size with external paddles:

  • Height: 13.4″ (34 cm)
  • Width: 12.4″ (31.3 cm)
  • Depth: 7.7″ (19.5 cm)

Size without external paddles:

  • Height: 11.7″ (29.5 cm)
  • Width: 12.4″ (31.3 cm)
  • Depth: 7.7″ (19.5 cm)

Weight:

  • 13.2 lbs. (6 kg) for base unit with 1 battery/pads and pads cable.
  • 13 lbs. (5.9 kg) with optional 75 mm strip chart printer.
  • Paddle tray and external standard paddles add less than 2.5 lbs. (1.1 kg).
  • Carrying case adds 4.1 lbs. (1.86 kg).

Defibrillation:

  • Waveform: Truncated Exponential Biphasic. Parameters adjusted based on patient impedance.
  • Output Energy: Manual mode: 1-200 Joules; AED mode: 150 Joules.
  • Charge Time: Less than 5 seconds to 200 Joules with a new/fully charged lithium-ion battery at 25°C.
  • Shock Delivery: Via multifunction defib electrode pads or paddles.
  • Shock-to-Shock Cycle Time: Typically less than 20 seconds.

Environmental & Physical Requirements:

  • Solids/Water resistance: IP24
  • Operating temperature: 0°C – 45°C (32°F – 113°F)
  • Storage temperature: -20°C – 70°C (-4°F – 158°F)
  • Operating humidity: 0% to 95% relative humidity
  • Operating altitude: 0 to 15000 ft (0 to 4500 m)
  • Storage altitude: 0 to 15000 ft (0 to 4500 m)

Battery:

  • Type: 6.3 Ah, 14.8 V, rechargeable lithium ion.
  • Dimension: 6.5” (H) x 3.8” (W) x 1.6” (D) (165 mm x 95 mm x 42 mm)
  • Weight: 1.6 lb. (0.73 kg)
  • Charge Time: Approximately 3 hours from fully depleted to 100%. 90 minutes from fully depleted to 80%.
  • Capacity: At least 3.5 hours of continuous 12-lead ECG/SpO2 and CO2 monitoring with specific usage conditions.
