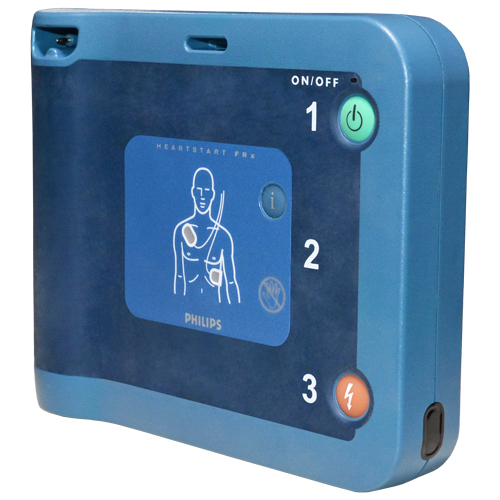

Philips HeartStart FRx

Single Product Request Form
Category

Description

Philips HeartStart FRx Features:

  • Automated external defibrillator (AED) with an optimal infant/child key for adapting adult pads for pediatric patients.
  • Clear, calm voice instructions and flashing icons for easy usability.
  • Automatically adjusts instruction and therapy when treating children.
  • SMART Biphasic waveform technology for effective shocks with minimized side effects.
  • Lightweight design at only 3.5 pounds for easy transportation to the patient.
  • Preconnected SMART Pads II usable for both adults and children.
  • Wireless data transfer via infrared port for easy transmission to smartphones or PCs.

Philips HeartStart FRx Specifications:

Dimensions:

  • Height: 7.1″ (18cm)
  • Depth: 2.4″ (6 cm)
  • Width: 8.9″ (22 cm)
  • Weight: With battery and pads case: 3.5 lbs. (1.5 kg)

Environmental / Physical Requirements:

  • Sealing: Waterjet proof IPX5 per IEC60529; Dust-protected IP5X per IEC60529
  • Temperature: Operating/Standby: 32º – 122º F (0º- 50º C)
  • Altitude: 0 to 15,000 feet
  • Crush: 500 pounds
  • Vibration Operating: meets MILSTD 810F Fig.514.5C-17, random; Standby: meets MILSTD 810F Fig.514.5C-18, swept sine
  • EMI (radiated/immunity): CISPR II Group I Class B, IEC 61000-4-3, and IEC 61000-4-8

Battery (m5070A):

  • Type: 9 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable long-life primary cell
  • Capacity: Minimum 200 shocks or 4 hours of operating time
  • Install-by date: At least 5 years from the date of manufacture
  • Standby life: Four years typical

Smart Pad II:

  • Active surface area: 12.4?2 (80 cm2) each
  • Cable length: 48? (121.9 cm)
  • Use-by date: At least 2 years from date of manufacture

Defibrillator:

  • Waveform: Truncated Exponential Biphasic. Waveform parameters adjusted based on patient impedance
  • Therapy: Adult defibrillation: Peak current 32A (150 J nominal); Pediatric defibrillation with optional FRx Infant/Child key installed: Peak current 19A (50 J nominal)

User Interface:

  • Instructions: Detailed voice prompts and visual icons
  • CPR coaching: Voice coaching for adult and infant/child CPR
  • Controls: Green On/Off button, blue i-button, orange Shock button, optional Infant/Child key
  • Indicators: Ready light, blue i-button, caution light, illuminated pads, Shock button lights up when shock is advised

Data Recording and Transmission:

  • Infrared: Wireless transmission of event data to a Smartphone or PC using the IrDA protocol
  • HeartStart Event Review Data management software (optional) for download and review of data retrieved through the defibrillator’s infrared data port
