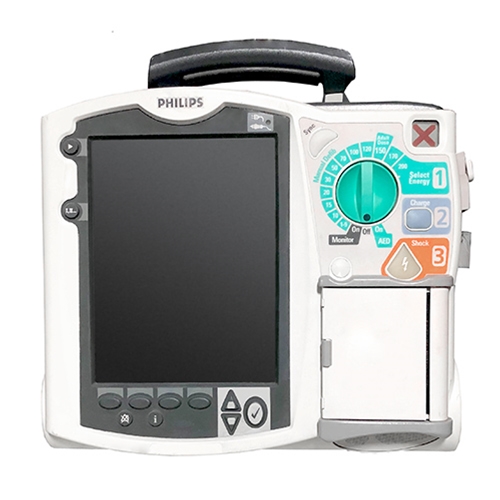

Philips Heartstart MRx

Single Product Request Form
Category

Description

HeartStart MRx Features:

    • Lightweight and portable monitor/defibrillator by Philips.
    • Offers four modes of operation: monitor, manual defibrillation, AED, and pacing.
    • Provides both monitoring and resuscitation capabilities with mutual-parameter functions.
    • Equipped with a large 8-inch color screen displaying up to 4 waveforms and numerics.
    • Monitors various parameters including arrhythmia detection, SpO2, NIBP, IBP, EtCO2, and temperature.

KEY FEATURES:

  • Easy-to-use Interface with large color display.
  • Customizable screen views to fit user preferences.
  • Normal or high-contrast view for easy visibility in different lighting conditions.
  • Seamless data transmission for 12-lead ECGs with optimal wireless link.
  • 10 hours of monitoring with 2 fully charged batteries.
  • Ready-For-Use indicator.
  • Optimal AC or DC battery options.

SPECIFICATIONS:

  • Dimensions (Without External Paddles):
    • Width: 12.4 in (31.3 cm)
    • Depth: 8.3 in (21 cm)
    • Height: 11.7 in (29.5 cm)
  • Dimensions (With External Paddles):
    • Width: 13.4 in (34 cm)
    • Depth: 8.3 in (21 cm)
    • Height: 13.6 in (34.5 cm)
  • Weight:
    • 2 lb (6kg) (Base unit with 1 MRx battery, pads, and pads cable).
    • Additional weight with MRx carrying case and paddle tray.
  • Environmental:
    • Water Resistance: Meets IEC 60601-2-4.
    • Solids Resistance: IP2X.
    • Temperature: Operating: 32º – 113º F (0º – 45º C), Storage: -4º – 158º F (-20º – 70º C).
  • MRx Display:
    • Dimensions: 8.4 in diagonal (12.8 cm x 17.1 cm).
    • Type: TFT color LCD.
    • Resolution: 640 x 480 pixels (VGA).
  • Strip Chart Printer:
    • Standard: 50 mm (paper width) thermal array printer.
    • Optional: 75 mm (paper width) thermal array printer.
    • Reports: Event Summary, 12-Lead, Vital Signs Trending, Operational Check, Configuration, Status Log, and Device Information.
  • Defibrillator:
    • Waveform: Biphasic Truncated Exponential.
    • Output Energy: Manual (selected): 1-200 Joules, AED Mode: 150 Joules.
    • Charge Time: Less than 5 seconds to 200 Joules with a new, fully charged lithium-ion battery at 25º C.
  • MRx Battery:
    • Type: 6.0 Ah, 14.8 V, rechargeable lithium ion.
    • Capacity: At least 5 hours of monitoring with ECG, SpO2, CO2, temperature, and more.
  • Data Storage:
    • Internal: 12 hours of continuous ECG waveforms and events.
    • Data Card: 60 event summary reports or 240 megabytes of patient data.
  • ECG and Arrhythmia Monitoring:
    • Up to 4 ECG waves displayed simultaneously.
    • Lead Fault and Pads Fault indication.
    • Heart Rate Display: Digital readout 15 to 300 bpm, accuracy ±10%.
    • Heart Rate Arrhythmia Alarms and various options available for monitoring.
