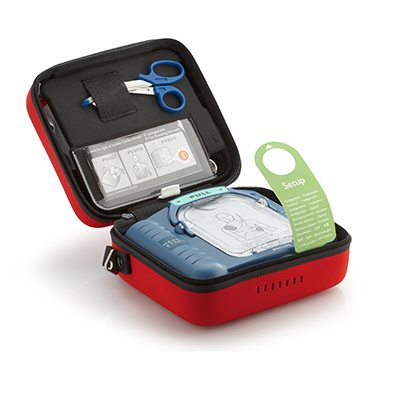

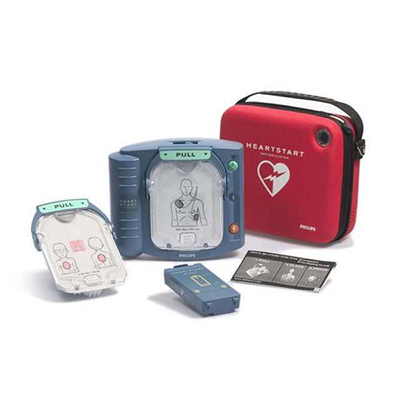

Philips HeartStart Onsite

Single Product Request Form
Category

Description

Philips HeartStart Onsite Features:

  • Lightweight at just 3.3 pounds, making it easy to transport.
  • Intuitive design with clear voice instructions for easy use by anyone.
  • Always ready with a long-life disposable battery and automated tests to ensure readiness.
  • Versatile, suitable for use on patients of any age, including children and infants.
  • Effective SMART Analysis heart rhythm assessment and SMART Biphasic defibrillation therapy.

Philips HeartStart Onsite Specifications:

Dimensions:

  • Height: 2.8 inches (7 cm)
  • Width: 8.3 inches (21 cm)
  • Depth: 7.4 inches (19 cm)
  • Weight:
  • With battery and pads case: 3.3 lbs (1.5 kg)
  • Without battery or pads case: 2.4 lbs (1 kg)

Defibrillator:

  • Defibrillator Family: HS1
  • Waveform: Truncated Exponential Biphasic, with parameters adjusted based on patient impedance.
  • Energy: Single energy output. Adult: nominal 150 Joules; Infant/Child: nominal 50 Joules. Automatically set based on the type of SMART Pads cartridge installed.
  • Shock-to-Shock Cycle Time: Typically less than 20 seconds between shocks in a series.
  • Quick Shock: Can deliver a shock after the CPR pause, typically in 8 seconds.
  • Voice Instructions: Detailed voice messages guide the user through the defibrillator’s use.
  • CPR Coaching: Instructions for adult and infant/child CPR are available at the user’s option.
  • Shock Delivery: Via adhesive pads placed on the patient’s bare skin.
  • Controls: Green SMART Pads Cartridge handle, green on/off button, blue i-button, orange shock button.
  • Indicators: Ready light, blue i-button, caution light.

Environmental / Physical Specifications:

  • Sealing: Solid objects per EN60529 class IP2X, Drip-proof per EN60529 class IPX1.

Temperature:

  • Operating: 32º – 122º F (0º- 50º C)
  • Standby: 50º – 109º F (10º- 43º C)

Humidity:

  • Operating: 0% to 95% relative, non-condensing
  • Standby: 0% to 75% relative, non-condensing

Altitude:

  • Operating: 0 to 15,000 feet
  • Standby: 0 to 8,500 feet > 48 hours and 8,500 to 15,000 feet < 48 hours
  • Shock/Drop: Withstands a 1-meter drop to any edge, corner, or surface.
  • Vibration: Meets EN1789 random and swept sine, road ambulance specifications in operating and standby states.
  • EMI (Radiated/Immunity): Meets EN55011 Group 1 Level B Class B and EN61000-4-3.

Battery (M5070A):

  • Type: 9 Volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells.
  • Capacity: Minimum 200 shocks or 4 hours of operating time.
  • Install-By Date: At least five years from the date of manufacture.
  • Standby Life: Four years typical when installed by the install-by date.

SMART Pads:

  • Adult SMARTPads Cartridge: For patients 8 years of age and older or 55 lbs (25 kg) and over.
  • Infant/Child SMART Pads Cartridge: For patients under 8 years of age or 55 lbs (25 kg).
  • Energy Delivered: Adult: nominal 150 Joules; Infant/Child: nominal 50 Joules.
  • Active Surface Area: 13.2 in2 (85 cm2) each.
  • Cable Length: Adult pads: 54 in (137.1 cm); Infant/Child pads: 40 in (101.6 cm).
  • Use-By Date: At least two years from the date of manufacture.
