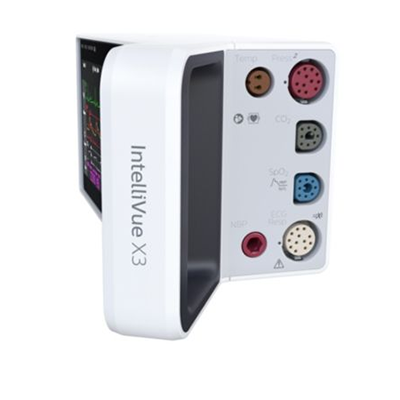

Philips IntelliVue X3 Multiparameter Monitor

Single Product Request Form
Category

Description

Features:

  1. Compact and Dual-Purpose Design: The Philips IntelliVue X3 is a compact and versatile patient monitor designed for both bedside use and patient transport. Its dual-purpose functionality makes it suitable for various clinical settings.
  2. Intuitive Operation: With smartphone-style operation, the IntelliVue X3 offers intuitive navigation and operation. Users can swipe the display to browse through different screens tailored to specific clinical situations, enhancing ease of use.
  3. Customizable Display: Each screen on the IntelliVue X3 can be customized to present the desired information in the preferred format, allowing clinicians to see exactly what they need at a glance.
  4. Streamlined Workflow: The IntelliVue X3 helps streamline workflow and improve efficiency by reducing the number of steps required to prepare patients for transport. When connected to an IntelliVue bedside monitor, it acts as a multi-measurement module. Upon detachment, it seamlessly transitions into a robust transport monitor without the need to change patient cables.
  5. Integration and Compatibility: The IntelliVue X3 integrates easily with existing IntelliVue patient monitoring solutions, including measurement extensions, host monitors, Patient Information Center, and clinical network infrastructure. This compatibility extends the lifecycle of patient monitoring solutions and lowers the total cost of ownership.
  6. Flexible Power Options: Users have the flexibility to choose how to power the IntelliVue X3. It ships with a removable rechargeable battery pack, offering over 5 hours of run time on a single charge. Additionally, users can opt for the optional AC-powered IntelliVue Dock, which provides charging and network connectivity in an affordable docking solution. Alternatively, attaching the X3 to a host monitor provides power from the host to the X3.

Philips IntelliVue X3 Specifications:

  • Dimensions:
    • Width: 7.6 in (194 mm)
    • Height: 3.8 in (97 mm)
    • Depth: 3.3 in (85 mm)
    • Weight: 3.1 lbs (1.4 kg) (including options, battery pack, and handle)
  • Environmental Specifications:
    • Operating Temperature Range: 0–40°C (32–104°F) or 0–35°C (32–95°F)
    • Storage Temperature Range: -20–60°C (-4–140°F)
    • Operating Humidity Range: 15–95% RH non-condensing
    • Storage Humidity Range: 5–90% RH non-condensing
    • Operating Altitude Range: -500–3000 m (-1640–9842 ft)
    • Storage Altitude Range: -500–4600 m (-1640–15091 ft)
  • Power Specifications:
    • Power Consumption:
      • <12 W average
      • <20 W when on IntelliVue Dock
    • Operating Voltage: 36–60 V DC floating
    • Current: 1.3 – 0.7 A
    • Frequency: 50/60 Hz
  • Display:
    • Active matrix color LCD display with capacitive multi-touch screen
    • Sweep Speeds: 6.25, 12.5, 25, and 50 mm/s
    • Resolution: 1024 x 480
    • Useful Screen: 140 x 65 mm (5.5 x 2.6 in)
    • Pixel Pitch: 0.14 x 0.14
  • Indicators:
    • Alarm Off: Red or yellow LED with crossed out alarm symbol
    • Alarms: Red/yellow/light blue (cyan) LED
    • On/Standby/Error: Green/red LED integrated in the power switch
    • External Power: Green LED
    • Battery: Green (full), yellow (charging), red blinking (empty) LED
