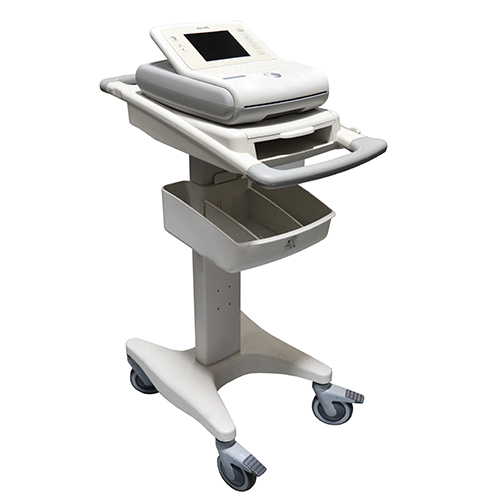

Philips PageWriter Trim III EKG
Description
- Features:
- Portable and compact 12-lead EKG monitoring system.
- Offers advanced technology for reporting and EKG storage.
- Features a 6.5-inch color display screen for easy preview of EKG readings.
- Supports Modem, CF Card, and LAN connectivity options.
- Can store up to 150 ECG readings.
- Specifications:
- Dimensions:
- Depth: 15.3 inches (38.8 cm)
- Width: 12.2 inches (31 cm)
- Height: 6.9 inches (17.6 cm)
- Weight: 16.3 lbs. (7.38 kg) including accessories
- Display Screen:
- 640 x 480-pixel resolution Color TFT display, 6.5 inches in diameter.
- Electrical Power:
- Line Power: 100 – 240 VAC, 50/60 Hz, 65 VA max.
- Battery Capacity: Typically supports 40 ECGs on a single charge or 30 minutes of continuous rhythm recording.
- EKG Acquisition:
- Supports R/T (real-time) ECG (12 leads), AUTO (12 leads), RHYTHM (up to 12 leads), and DISCLOSE (1 lead).
- Auto Frequency Response:
- Offers various frequency response options to meet different requirements.
- Filters:
- Includes AC noise, baseline wander, and artifact filters for accurate readings.
- Environmental Operating Conditions:
- Temperature range of 10° to 40°C, humidity range of 15% to 80% RH, and altitude up to 4,550 m.
- Environmental Storage Conditions:
- Temperature range of 0° to 50°C, humidity range of 5% to 90% RH, and altitude up to 4,550 m.
- Dimensions:
