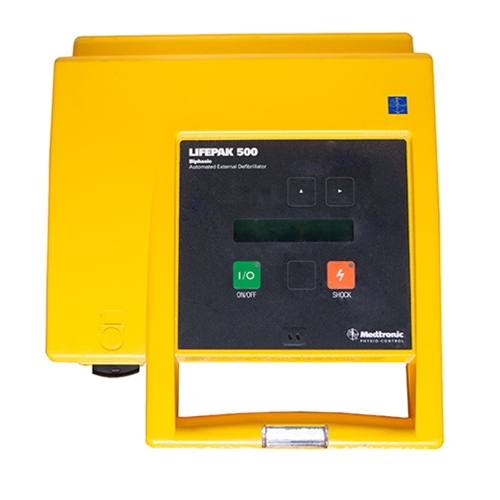

Physio-Control Lifepak 500 AED

Single Product Request Form
Category

Description

Physio-Control Lifepak 500 Features:

  • Portable and battery-powered AED.
  • Offers vocal and visual step-by-step instructions.
  • Comes in both Monophasic and Biphasic modes.
  • Runs self-tests every 24 hours for maintenance and readiness.
  • Simple 2 or 3-button operation.
  • Low maintenance and durable design.

Physio-Control Lifepak 500 Specifications:

Dimensions:

  • Height: 4” (10.2 cm)
  • Width: 10.5” (26.7 cm)
  • Depth: 11.6” (29.5 cm)
  • Weight:
  • Monophasic: 6.2 lbs (2.8 kg)
  • Biphasic: 5.3 lbs (2.4 kg) (Without batteries)

Defibrillator:

  • Input: ECG via QUIK-COMBO or FAST-PATCH disposable electrodes.
  • Electrical Protection: Input protected against high voltage defibrillator per IEC 60601/EN 60601.
  • Waveform: Monophasic pulse (Edmark) or Biphasic truncated exponential.
  • Output Energy Sequence: Monophasic: 200, 200, 360 joules (360 joules thereafter) or 200, 300, 360 joules. Biphasic: user-configurable levels from 200 to 360 joules.
  • Charge time: Less than 9 seconds for 200 joules, less than 15 seconds for 360 joules with a new battery.
  • Controls: ON/OFF, ANALYZE (optional), SHOCK.
  • Display: Two-line, 20-character per line dot matrix liquid crystal display.
  • Event Documentation: Internal digital memory for audio recording, ECG, and event log.

Batteries:

  • Rechargeable SLA Battery Pak: Sealed lead-acid, 8V, 2.5 amp-hours.
  • Capacity: Typical: 59 full discharges or 3 hours of ON time.
  • Minimum: 43 full discharges.
  • Charge Time: 10 ± 1 hour.
  • Non-rechargeable Lithium Battery Pak: Sealed lithium, 12V, 7.5 amp-hours.
  • Capacity: Typical: 312 full discharges or 14 hours of ON time.
  • Minimum: 230 full discharges.
  • Shelf life: 5 years.

Environmental:

  • Operating Temperature: 0° to 50°C (+32° to +122°F).
  • Storage Temperature: -30° to +65°C (-22° to +149°F).
  • Atmospheric Pressure: 760 to 429mmHg (0 to +15,000 ft above sea level).
  • Relative Humidity: 10 to 95% (non-condensing).
  • Water Resistance: IPX4 Splash-proof.
  • Shock: MIL-STD-810E, Method 516.4.
  • Vibration: MIL-STD-810E, Method 514.4.
