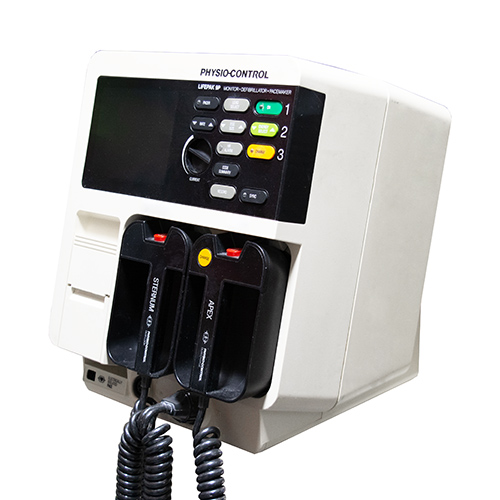

Physio Control Lifepak 9

Single Product Request Form
Category

Description

Physio-Control Lifepak 9 Features:

    • The Physio-Control Lifepak 9 is a defibrillator/monitor equipped with a microprocessor, offering simplicity and user-friendliness in operation.
    • Features both high and low-energy selections, non-invasive pacing, and 3-lead and 5-lead ECG monitoring.
    • Offers a cardioscope for enhanced monitoring capabilities.
    • Includes an adaptor for hands-free defibrillation.
    • Microprocessor determines the required energy for defibrillation, adjusting for low battery power or voltage variations.
    • Suitable for both adult and pediatric patients.

SPECIFICATIONS:

  • Dimensions:
    • Height: 35.2 cm (13.9 in)
    • Width: 29.7 cm (11.7 in)
    • Depth: 31 cm (12.2 in)
    • Weight: 12.7 kg (28 lbs)
  • General Specifications:
    • Power Cord Length: 3m (10 ft)
    • Standard Paddle Electrode Area: 82 square cm
    • AC Input Option: 120 or 240 Vac nominal line voltage, 50 or 60Hz.
    • Battery Type: Sealed lead-acid, 16 Vdc nominal, 3 Amp-hour.
    • Battery Charge Time: 24 hours to full capacity.
    • ECG Monitor:
      • ECG Lead Selections: Std, Paddles, I, II, III.
      • Input: Isolated ECG via QUIK-LOOK® defibrillator paddles, FAST-PATCH® disposable defibrillation/ECG electrodes, or 3-lead patient cable.
      • Common Mode Rejection: 100dB minimum with respect to chassis ground and 65dB minimum with respect to isolated ground at 60Hz.
      • Monitor Display Size: 102mm (4 in) wide x 76mm (3 in) tall.
    • Defibrillator:
      • Defibrillator Waveform: 5-millisecond monophasic pulse (Edmark).
      • Energy Select:
        • External Paddles: 1 to 360 Joules.
        • Internal Paddles: 1 to 50 Joules.
      • Charge Time: <10 seconds to charge to 360 Joules with a fully charged battery.
    • Thermal Array Recorder:
      • Paper Size: 50mm wide x 30m (100 ft).
      • Paper Speed: 25mm/second.
      • Delay: ECG prints 8 seconds after first appearing on the monitor.
      • Annotation: Time, date, ECG lead, ECG gain, heart rate, defibrillation parameters, test load discharges.
    • Environmental:
      • Atmospheric Pressure: 797mmHg to 500mmHg (-570 to 11000 ft).
      • Relative Humidity:
        • 0 to 95% (non-condensing) at 0 to 34°C.
        • 0 to 80% (non-condensing) at 35 to 45°C.
      • Temperature Range: 0 to 45°C operating, -30 to 65°C storage.
