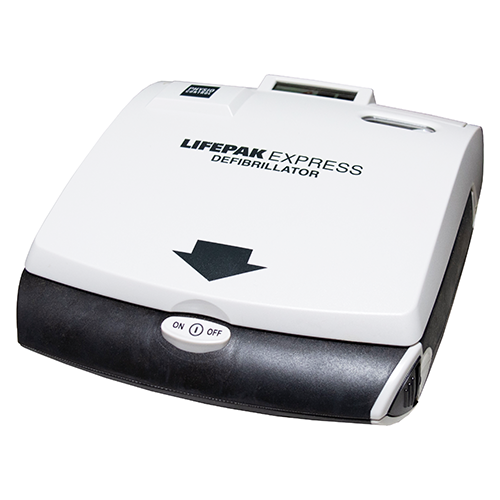

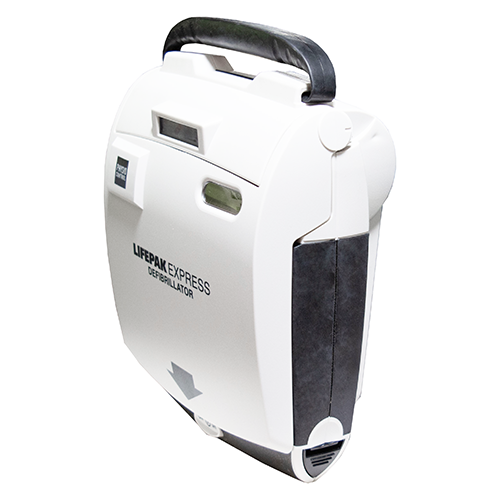

Physio-Control Lifepak Express

Single Product Request Form
Category

Description

Physio-Control Lifepak Express Features:

  • Automatic external defibrillator designed for early defibrillation in cases of sudden cardiac arrest (SCA).
  • Utilizes Quik-Pak electrode pads for rapid heart rhythm analysis.
  • Provides clear voice instructions through step-by-step prompts.
  • Features a flashing shock button to prompt rescuers when to administer a shock.
  • Lightweight, compact, and easy to use.
  • Capable of delivering up to 360 joules of energy if needed.
  • Highly visible readiness indicator.
  • Simplified maintenance requirements.

Physio-Control Lifepak Express Specifications:

Dimensions:

  • Height: 4.2” (10.7 cm)
  • Width: 8” (20.3 cm)
  • Depth: 9.5” (24.1 cm)
  • Weight: 4.5 lbs (2 kg)

Defibrillator:

  • Waveform: Biphasic truncated exponential with voltage and current duration compensation.
  • Output Energy Sequence: Configurable from 150 joules to 360 joules.
  • Shock Advisory System: Advises whether a shock is appropriate based on ECG analysis.

Device Capacity:

  • Capacity: Thirty (20) full discharges or 140 minutes of “on time” with a fully charged device.
  • Shock Charge Time: Less than 9 seconds for 200 joules, less than 15 seconds for 360 joules.

Controls:

  • Lid Release/ON-OFF: Controls device power.
  • SHOCK Button: Delivers defibrillation energy.
  • User Interface:
  • Voice Prompts: Provides step-by-step instructions.
  • Readiness Display: Shows device status.
  • OK Indicator: Indicates successful completion of the last self-test.
  • CHARGE-PAK Indicator: Indicates the need to replace the CHARGE-PAK battery charger.
  • Attention Indicator: Alerts when at least six (6) discharges or 42 minutes of operating time remain.
  • Service Indicator: Indicates service is required.

Data Storage:

  • Memory Type: Internal digital memory.
  • ECG Storage: Dual patient data storage with a minimum of 20 minutes of ECG stored for the current patient.
  • Report Types: Continuous ECG, Continuous Summary Report, Event Log report, Test Log report.

Environmental:

  • Operating Temperature: 0° to +50°C (+32° to +122°F).
  • Long-term Storage Temperature: +15° to +35°C (59° to 95°F).
  • Short-term Storage Temperature: -40° to +70°C (-40° to 158°F) for a maximum of one week.
  • Water Resistance: IPX4 “Splash-proof” with electrodes connected and CHARGE-PAK installed.
