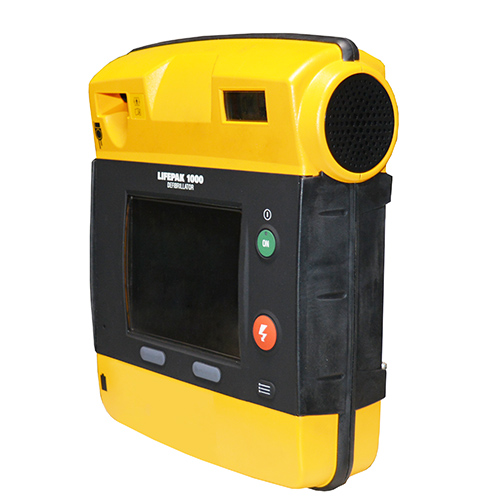

Stryker Physio-Control Lifepak 1000

Single Product Request Form
Category

Description

Stryker Physio-Control Lifepak 1000 Features:

  • Large Display: Features a large LCD screen capable of displaying graphics and ECG readings.
  • Audio and Visual Guidance:** Provides audio prompts and on-screen guidance to assist users during operation.
  • CPRMax Technology: Allows for uninterrupted compressions during CPR while the AED charges.
  • Adaptive Biphasic Technology: Offers a range of energy delivery from 150 to 360 joules.
  • 3-Lead ECG Functionality: Includes 3-lead ECG functionality when needed for enhanced monitoring.
  • Adjustable Settings: Settings can be adjusted to match CPR and resuscitation protocols.
  • Voice Prompts: Loud voice prompts for clear instructions.
  • AED to Manual Mode Conversion: Can easily switch from AED to Manual Mode with the touch of a button.

Stryker Lifepak 1000 Specifications:

Dimensions:

  • Height: 3.4 in (8.7 cm)
  • Width: 9.2 in (23.4 cm)
  • Depth: 10.9 in (27.2 cm)
  • Weight: 7.1 lbs (3.2 kg) with non-chargeable battery and REDI-PAK electrodes

Display:

  • Size (Active Viewing Area): 120 mm (4.7 in.) x 89 mm (3.5 in)
  • Type: 320 dot x 240 dot LCD with backlight
  • Frequency Response: 0.55 Hz to 21 Hz (-3 dB), nominal
  • Waveform Sweep Speed: 25 mm/sec for ECG, nominal
  • Waveform Viewing Time: Minimum 4 seconds
  • Waveform Amplitude: 1 cm/mV, nominal
  • Display Range: Differential ±1.4 mV full scale, nominal
  • Heart Rate: 20 to 300 BPM digital display

ECG Mode:

  • Provides a non-diagnostic ECG display of the patient’s heart rhythm.

Manual Mode:

  • Energy Sequence: Delivers energy at levels selected in Setup mode

Charge Time:

  • 200 joules in less than 7 sec (typical)
  • 360 joules in less than 12 sec (typical)

AED Mode:

  • Shock Advisory System (SAS): Advises whether a shock is appropriate based on ECG analysis.
  • Energy Sequence: Multiple levels, configurable from 150 to 360 joules

Shock Ready Time:

  • Less than 25 sec to 200 joules
  • Less than 30 sec to 360 joules

With Infant/Child Pads:

  • Energy Accuracy (into 50 ohms): Selected energy ÷ 4 +/- 15%; 86 joules +/- 15% maximum

With Adult Pads:

  • Patient Impedance Range: 10 – 300 ohms

Energy Accuracy:

  • 10% of the energy setting into 50 ohms
  • 15% of the rated energy output into 25 – 175 ohms

Waveform:

  • Biphasic Truncated Exponential with voltage and duration compensation for patient impedance.
