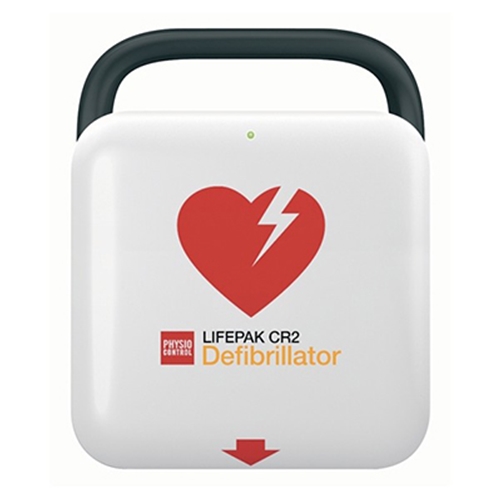

Stryker Physio Control Lifepak CR2

Single Product Request Form
Category

Description

The Stryker Physio-Control Lifepak CR2 is an advanced defibrillator designed to provide continuous CPR during heart rhythm analysis, reducing the delay between CPR and defibrillation. This small and portable Automated External Defibrillation (AED) system offers clear voice commands to guide users through the defibrillation process, making it suitable for both trained and untrained individuals.

Equipped with electrode pads for both adult and pediatric patients, the Lifepak CR2 can deliver up to 360 joules of energy during defibrillation. It features Wi-Fi connectivity, allowing first responders to monitor the patient’s vitals comprehensively during a cardiac arrest event.

KEY FEATURES:

  • Dynamic and versatile training tool.
  • Intuitive operation with clear voice prompts.
  • Fully customizable scenarios without the need for a remote.
  • Bold graphics for easy-to-follow instructions.
  • Quik-Step Electrodes for rapid placement.
  • cprINSIGHT analysis technology for continuous rhythm analysis during compressions.
  • Metronome and CPR coaching for effective chest compressions.
  • Child mode for reduced energy delivery and appropriate guidance.
  • ClearVoice Technology ensures prompts are audible in noisy environments.
  • Highest available energy of up to 360J for effective shocks.
  • Bilingual capability with toggle between preset languages.
  • Lifepak Touch with IP55 rating for durability in challenging environments.

SPECIFICATIONS:

  • Dimensions:
    • Height: 3.8 in (9.7 cm)
    • Width: 8.9 in (22.6 cm)
    • Depth: 10.8 in (27.4 cm)
    • Weight: 4.5 lbs (2.0 kg)
  • Battery:
    • Type: Lithium manganese dioxide
    • Capacity: Provides 166 200 joule shocks or 103 360 joule shocks or 800 minutes of operating time
    • Replace Battery Indication: Indicates when at least 6 shocks and 30 minutes of operation time remain
  • Electrode pads:
    • Can be used on both adult and pediatric patients
    • Packaging: User-intuitive, rapid access electrodes
    • Replacement: Replace every 4 years or after each patient use
  • Environment:
    • Operating Temperature: +32° to +122°F (0° to +50°C)
    • Storage Temperature: -22° to +140°F (-30° to +60°C)
    • Altitude: -1,253 to 15,000 ft (-382 to 4,572 m)
    • Relative Humidity: 5 to 95% (non-condensing)
    • Dust and Water Resistance: IP55 with electrodes connected and battery installed
    • Shock and Vibration Resistance: Compliant with IEC and MIL-STD standards
  • User Interface:
    • Includes voice prompts and audible tones
    • ClearVoice Technology adjusts audio for clear prompts in noisy environments
  • Data Storage:
    • Internal digital memory with ECG storage for two patient episodes
  • Communications:
    • USB and Wireless 802.11 b/g/n data transfer capabilities to LIFELINK central AED program manager or LIFENET System.
