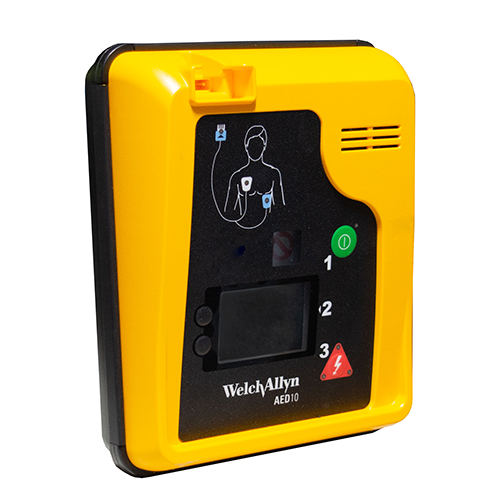

Welch Allyn AED 10

Single Product Request Form
Category

Description

Welch Allyn AED 10 Features:

  • Two-Button Operation: Simple design with only an on/off button and a shock button, making it easy to use even in stressful situations.
  • Text and Voice Instructions: Guides the user through the rescue process with both text and voice prompts, ensuring clarity and confidence.
  • Color-Coded Pads and Illustrations: Ensures proper placement of electrode pads, reducing the risk of error during usage.
  • Escalating Energy Levels: Offers escalating energy levels (150 J, 200 J, 300 J, 360 J) for shock delivery, with the energy protocol configurable to meet specific needs.
  • High-Performance Battery: Delivers up to five years of standby performance or over 90 discharges at 360 joules, ensuring reliability during emergencies.
  • Internal Memory: Stores event data including ECG waveforms, time/date stamps, shock delivery, and system actions, allowing for review and analysis.
  • Lightweight and Compact: Ideal for small spaces and portable use, ensuring accessibility in various settings.
  • Data Transfer Capability: Offers wireless data transfer from the device to a PC, facilitating record-keeping and analysis.

Welch Allyn AED 10 Specifications:

Dimensions:

  • Height: 2.75” (7 cm)
  • Width: 6.88” (17.5 cm)
  • Depth: 8.25” (21 cm)
  • Weight: 3.5 lbs (1.6 kg)

Data Management:

  • Event Documentation: Internal storage with a capacity of 1MB, capable of storing 250 4-sec ECG samples or 3000 time-stamped events.
  • Quick Report: Provides a treatment summary, event log, and test log for efficient review and analysis.
  • Communication: RS-232 via Infrared (IR) port for communication with a PC or printer.

Defibrillator:

  • Output: MRL Orbital Biphasic Truncated exponential waveform.
  • Energy Sequence: User-configurable sequence with multiple shock levels.
  • Charge Time: Ranges from 4 seconds to 15 seconds, depending on the energy level required.
  • Analysis Time: 4-16 seconds for analyzing the patient’s heart rhythm.
  • Audible and Visual Prompts: Provides 18 audible prompts and 20 text screen prompts for guidance during usage.
  • Controls: Four buttons including On/Off, Shock, and 2 software-configurable buttons.

Display:

  • Type: Backlit Monochrome LCD.
  • Size: 2.1” x 1.42” (54 x 36 mm) with a resolution of 160 x 100.
  • Low Battery Indicator: Battery icon gauge on the display with 10 capacity levels.
  • Backlight: LED for enhanced visibility in low-light conditions.

Battery:

  • Type: Non-rechargeable LiMnO2 12V, 2.6 Ah battery.
  • Capacity: Supports multiple discharges at different energy levels or up to 5 hours of ECG monitoring.
  • Shelf Life: 10 years at appropriate storage conditions.
