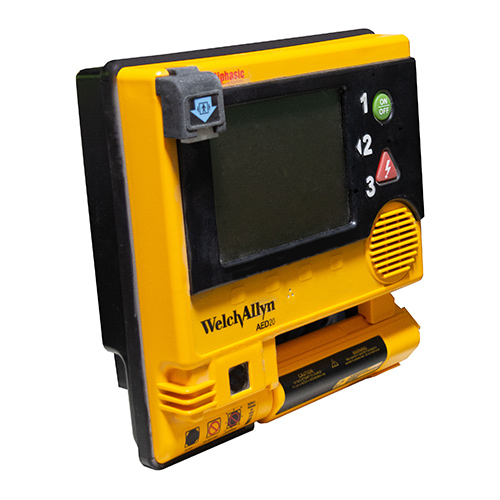

Welch Allyn AED 20

Single Product Request Form
Category

Description

Welch Allyn AED 20 Features:

  • 3-Step Operation: Simplified operation with only three steps required to use the device effectively.
  • Extensive Voice and Visual Prompts: Provides clear guidance to the operator through audible and visual cues, enhancing usability.
  • Weekly and Monthly Self-Tests: Ensures device readiness by conducting regular self-tests to verify functionality.
  • Optional Rechargeable Battery: Offers flexibility with the option for a rechargeable battery for prolonged usage.
  • Biphasic Energy Output: Delivers biphasic truncated exponential waveform for effective defibrillation.
  • Lock-out Protection: Prevents inadvertent defibrillation in manual mode through passcode-protected lockout feature.

Welch Allyn AED 20 Specifications:

Dimensions:

  • Height: 3.3” (8.4 cm)
  • Width: 8.9” (22.6 cm)
  • Depth: 9.4” (23.9 cm)
  • Weight: 5.4 lbs (2.45 kg)

Data Management:

  • Event Documentation: Internal storage and via Welch Allyn Datacard for comprehensive data logging.
  • Internal Memory Capacity: 1MB capacity for storing ECG samples and time-stamped events.
  • Data card Compatibility: Supports various capacities of data cards for continuous monitoring and recording.
  • Communication: Serial port via RS-232 to PC and printer for data transfer.

Defibrillator:

  • Output: Biphasic Truncated exponential waveform for effective defibrillation.
  • Energy Sequence: User-configurable sequence with multiple shock levels for versatility.
  • Manual and Automatic Energy Selection: Offers both manual and automatic energy selection options for convenience.
  • Manual Lockout: Passcode-protected manual lockout feature to prevent unauthorized use.
  • Charge Time: Ranges from 8 to 50 seconds for prompt readiness.
  • Audible and Visual Prompts: Provides a minimum of 20 audible prompts and 13 text screen prompts for clear guidance.
  • Controls: Two buttons – On/Off, Discharge, and four software-configurable buttons for ease of use.

Display:

  • Type: 1/4 VGA Monochrome LCD for clear visualization.
  • Size: 5.7” (145 mm) diagonal with a resolution of 320 x 240 for detailed display.
  • Heart Rate Monitoring: Displays heart rate ranging from 20 to 300 bpm with user-configurable settings.
  • Backlight (Optional): EL backlight for enhanced visibility in low-light conditions.

Battery:

  • Rechargeable: NiMH 12V, 2.1 Ah battery with a capacity of 80 discharges at 360 Joules or 3 hours of ECG monitoring.
  • Non-Rechargeable: Lithium 12V, 5.2 Ah battery with extended capacity for prolonged usage.
  • Shelf Life: Offers a shelf life of 10 years with appropriate storage conditions, ensuring long-term reliability.
