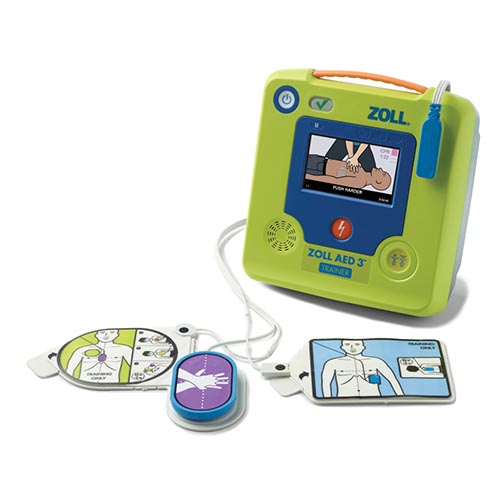

Zoll AED 3

Single Product Request Form
Category

Description

Zoll AED 3 Features:

  • Real CPR Technology: Provides real-time feedback on the quality of CPR, ensuring correct compression rate and depth.
  • Universal Adult/Child CPR Uni-padz: Electrode pads that detect and report the motion of chest compressions, suitable for both adults and children.
  • Constant Metronome: Maintains a consistent metronome at a rate of at least 100 compressions per minute, aligning with the latest CPR guidelines.
  • Push Button Selection for Child Rescue: Allows quick selection of child rescue mode using a dedicated button.
  • Dual Orientation: Can be used in upright or flat orientation for optimal screen visibility during a rescue.
  • High-Resolution LCD Touchscreen: Touchscreen display provides clear visual prompts and instructions, accompanied by full-color graphics and text.
  • On-Screen Display of Critical Information: Displays elapsed time and number of shocks delivered, crucial information for emergency medical services (EMS) upon arrival.
  • Rescue Accessory Pack: Includes essential accessories such as non-latex gloves, CPR mask, razor, paper towel, and towelette.
  • Attached Clothing Scissors: Scissors are attached to the CPR Uni-padz for easy removal of clothing during rescue operations.

Zoll AED 3 Specifications:

Dimensions:

  • Height: 5 in (12.7 cm)
  • Width: 9.3 in (23.6 cm)
  • Depth: 9.7 in (24.7 cm)
  • Weight: 5.5 lbs (2.5 kg)

Defibrillator:

  • Protocol: Semiautomatic and Fully Automatic configuration
  • Waveform: ZOLL Rectilinear Biphasic
  • Charge Time: Less than 10 seconds with a new battery
  • Electrodes: ZOLL CPR Uni-padz
  • Compression Depth: 1.9 cm to 10.2 cm (adult patients only)
  • Defibrillation Advisory: Evaluates defibrillation pad connection and patient ECG to determine if defibrillation is required

Display:

  • Type: High-resolution LCD with capacitive touch panel
  • Screen Size: 5.39 cm x 9.5 cm (2.12 in x 3.74 in)

Data Recording and Storage:

  • User-configurable for up to 2 clinical events, totaling 120 minutes, including ECG, impedance measurements, device prompts, and CPR data.

Environmental:

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -30°C to 70°C (-22°F to 158°F)
  • Humidity: 10% to 95% relative humidity, non-condensing

Battery:

  • Type: Disposable, sealed lithium manganese dioxide
  • Standby Life: 5 years with weekly self-test
  • Shelf Life: Up to 2 years at 23°C (77°F) prior to installation
  • Weight: 317.5 grams (0.7 lbs)
  • Nominal Voltage: 12 volts
