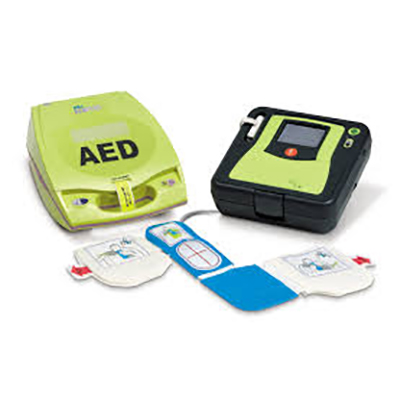

Zoll AED Pro

Single Product Request Form
Category

Description

Zoll AED Pro Features:

  • Advanced Capabilities: Designed to support both Basic Life Support (BLS) and Advanced Life Support (ALS) professionals.
  • High-Resolution LCD Display: Allows responders to visualize a patient’s ECG using a 3-lead monitoring cable.
  • Rubber Over-Molds: Built to withstand harsh environments, enhancing durability and longevity.
  • One-Piece CPR-D Padz: Unique electrode pads for easy placement and feedback on CPR chest compressions.
  • Manual Override Options: Provides flexibility for ALS professionals to manually adjust settings as needed.
  • Internal Memory Data Storage: Stores critical data internally for later retrieval and analysis.
  • Data Transfer Options: Supports data transfer via IrDA or USB for seamless integration with other medical devices.

Zoll AED Pro Specifications:

Dimensions:

  • Height: 3” (7.6 cm)
  • Width: 9.2” (24.1 cm)
  • Depth: 9.4” (23.9 cm)
  • Weight: 6.5 lbs (2.9 kg)

Defibrillator:

  • Waveform: ZOLL Rectilinear Biphasic waveform
  • Energy: Preconfigured energy levels for both adult and pediatric patients
  • Charge Time: Less than 10 seconds with a fully charged battery

Display:

  • Screen Type: High-resolution LCD display
  • Screen Size: 3.02 inches W x 2.27 inches H
  • Displayed Information: Heart rate, ECG waveform, text prompts, CPR bar graph, battery gauge, elapsed time, number of shocks delivered

ECG Monitoring:

  • Patient Connection: 3-lead ECG cable
  • Heart Rate: 30-300 bpm ±5%

Battery:

  • Type: Rechargeable sealed lead acid or disposable lithium manganese
  • Operating Time: Varies based on battery type and conditions

Environmental:

  • Operating Temperature: 0º C to 50º C
  • Storage and Shipping Temperature: -30º C to 70º C
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Vibration: MIL Std. 810F, Minimum Helicopter Test
  • Shock: IEC 68-2-27; 100G
  • Material/Water Ingress: IEC 60529, IP55
  • Electromagnetic Compatibility (EMC): CISPR; 11 Class B Rated and Conducted Emissions
