Zoll X Series

Single Product Request Form
Category

Description

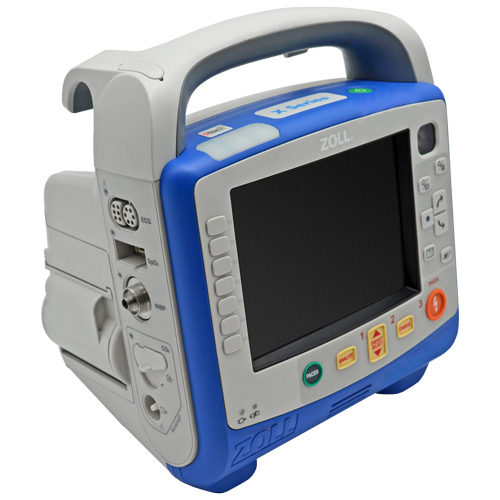

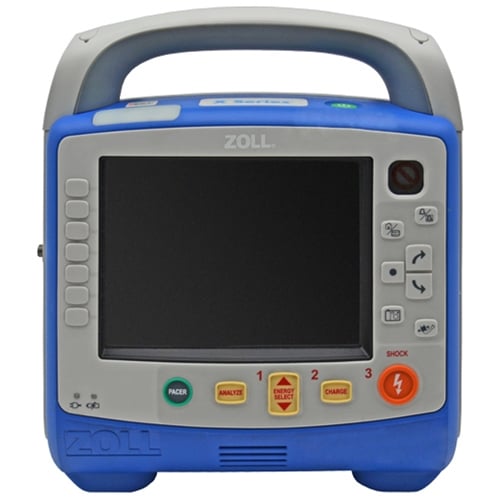

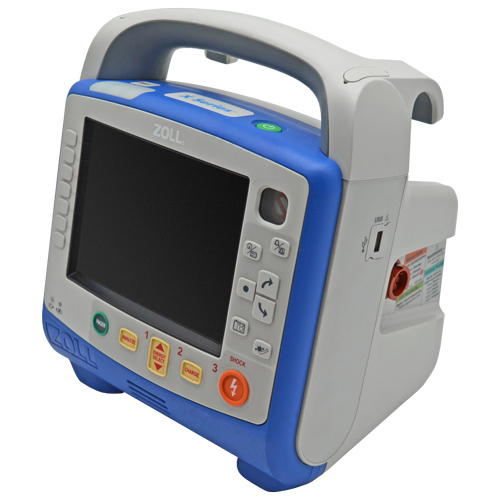

The Zoll X Series is a versatile portable defibrillator that integrates advanced monitoring capabilities with defibrillation, making it suitable for a wide range of medical emergencies. It offers comprehensive monitoring of vital parameters such as ECG, CO-Oximetry, NIBP, IBP, CO2, temperature, and respiration, making it ideal for use in critical care settings, including trauma, cardiac arrest, respiratory distress, pediatric emergencies, and more.

KEY FEATURES:

  • Portable defibrillator with advanced monitoring capabilities
  • Suitable for a wide range of medical emergencies
  • Real CPR Help and Real BVM Help technologies for improved patient outcomes during cardiac arrest
  • Can run off rechargeable batteries or an auxiliary power supply
  • Color LCD display for clear visualization of waveforms and numerical displays of vital parameters
  • Wireless data transfer capability for convenient data management
  • Suitable for use on neonatal to adult patients
  • Compact and lightweight design for ease of transport and use

SPECIFICATIONS:

  • Dimensions:
    • Height with Handle: 10.4 in (26.4 cm)
    • Height without the Handle: 8.75 in (22.2 cm)
    • Width: 8.9 in (22.6 cm)
    • Depth: 7.9 in (20.1 cm)
  • Weight:
    • Without the battery and Paper: 10.6 lbs
    • With the battery and paper: 11.7 lbs
  • Operating Temperature:
    • 0 to 50°C
  • Humidity:
    • 15 to 95% RH (non-condensing)
  • Vibration:
    • Compliant with various standards for operational environments including ambulance and helicopter use
  • Shock:
    • Compliant with shock resistance standards
  • Battery:
    • Type: Rechargeable Lithium-Ion
    • Capacity: Supports continuous monitoring and defibrillation for extended periods
    • Battery Indicators: LED indicators for battery capacity
    • Recharge Rate: 100% in 4 hours
  • Monitor / Display:
    • Size: 6.5 in (16.56 cm) diagonal
    • Type: Color LCD, 640 x 480 pixels
    • Input: Compatible with various patient cables and electrodes
  • Defibrillator:
    • Waveform: Rectilinear Biphasic
    • Energy Selections: Range from 1 to 200 joules
    • Charge Time: Less than 7 seconds
    • Charge Controls: Front panel and on apex paddle
  • Pacer:
    • Type: External transcutaneous pacing
    • Pacer Rate: 30 to 180 BPM
    • Output Current: 0 to 140 mA
    • Modes: Demand and Fixed
